Help! What's this wiring?
« on: October 21, 2018, 02:31:13 PM »

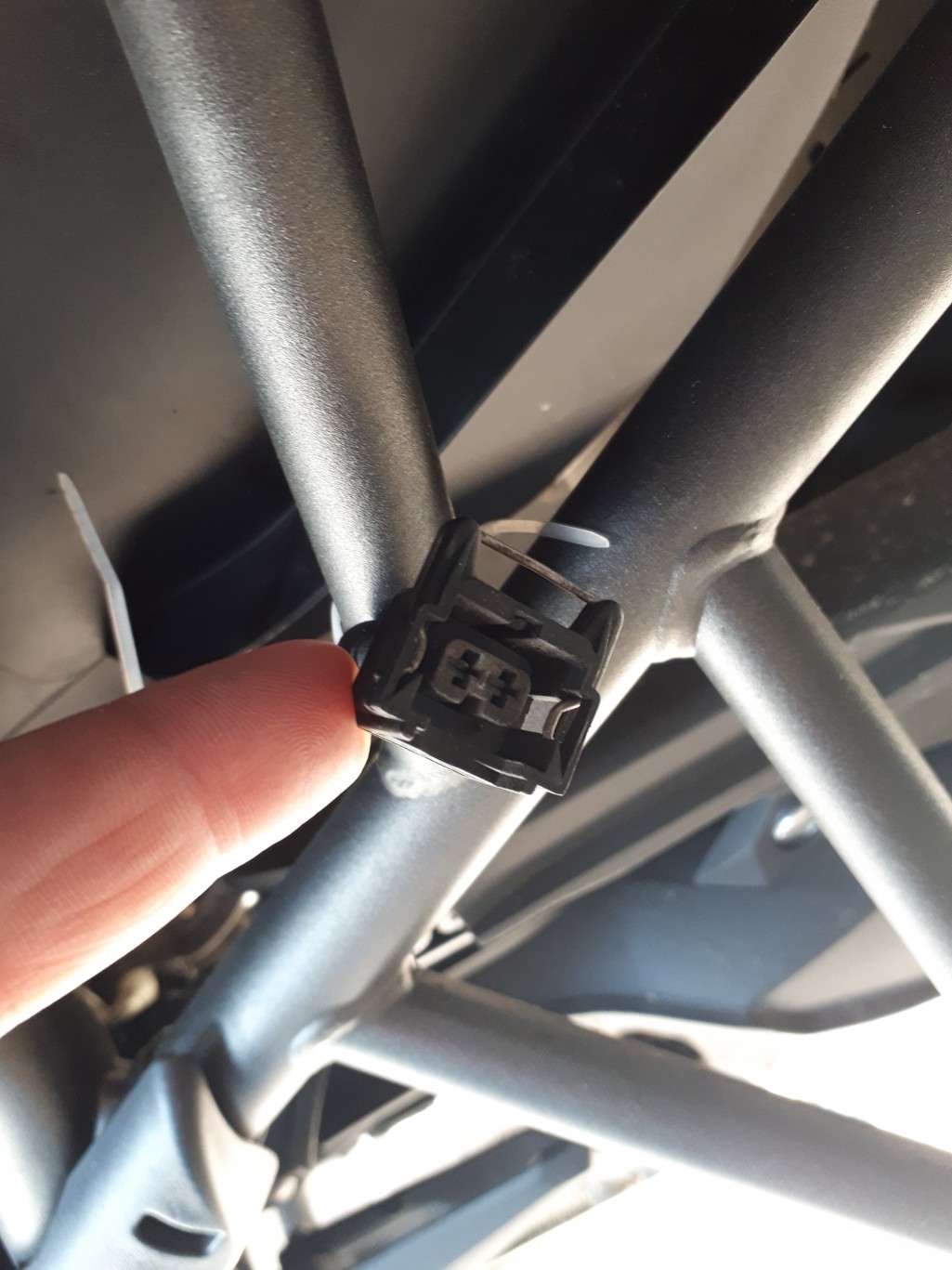

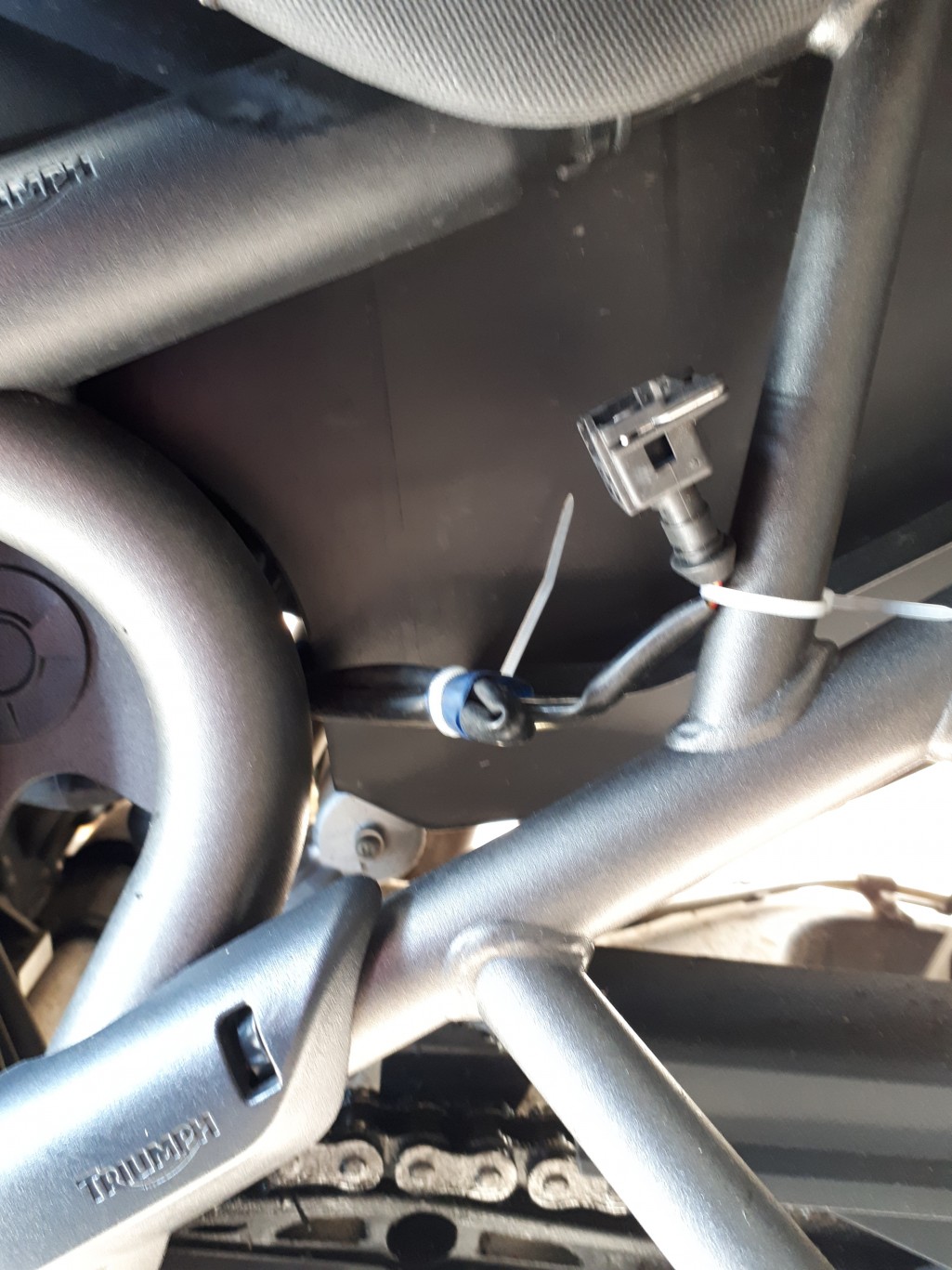

Soon after I bought my Tiger about 3 months ago,  this bit of wiring loom appeared on the left hand side. I've cable tied it to stop it flopping about,  but would like to know what it is before I secure it out of sight.





I'm assuming it's for connecting to a battery charger. Right?

Offline grizzlybear

  • Tiger Master
  • ****
  • Posts: 842
  • Bike: tiger 800 ABS
  • Location: Walsall UK
Re: Help! What's this wiring?
« Reply #1 on: October 21, 2018, 06:20:01 PM »
ain't got a clue  :084: . It don't look standard Triumph stuff
Safe Riding
Dave( Grizzlybear) honda 125T,  Z650C2, GPZ750, GTR1000, VX800, VN1500 ,tiger800 and loads of C90`s  :)

Offline grunty-motor

  • Tiger Member
  • **
  • Posts: 91
  • Bike: XCA
  • Location: AberFreeze
Re: Help! What's this wiring?
« Reply #2 on: October 21, 2018, 07:11:50 PM »
some sort of battery tender?

Offline jeffa

  • Tiger Member
  • **
  • Posts: 64
  • Bike: tiger 800 cbr600
  • Location: england
Re: Help! What's this wiring?
« Reply #3 on: October 21, 2018, 10:55:36 PM »
Where does the other end go

Offline Guyver

  • Tiger Master
  • ****
  • Posts: 250
  • Bike: Tiger 800XC
  • Location: Black Country
Re: Help! What's this wiring?
« Reply #4 on: October 31, 2018, 01:01:33 PM »
That's not for a battery monitor. That's a proper bit of plug and play looking at the clip that holds it together. Looks almost like an injector plug. Need to know where the cable rubs to.

Offline T800XC

  • Premier Member
  • Tiger Jedi
  • *
  • Posts: 1998
  • Bike: 800XC & Explorer
  • Location: English Riviera
Re: Help! What's this wiring?
« Reply #5 on: October 31, 2018, 01:39:40 PM »
Can you confirm the wire colours?

From previous threads it looks like it could be for the Purge Valve, as used in the Californian market.

...happiness isn't happiness without a violin-playing goat...

Offline manhoot

  • Tiger Pro
  • ***
  • Posts: 142
  • Bike: Xca
  • Location: Devon
Re: Help! What's this wiring?
« Reply #6 on: October 31, 2018, 09:25:43 PM »
Yep Purge valve should be in the battery box
I am one with the Force The Force is with me

Online K1W1

  • Tiger Jedi
  • *****
  • Posts: 3772
  • Bike: XRX
  • Location: SE Australia
Re: Help! What's this wiring?
« Reply #7 on: November 01, 2018, 06:16:44 AM »
It is not a factory fit they don't use cable ties and leave the ends loose.
Is it for heated clothing?
Does the wiring trace back to the battery?

Offline gordybrock

  • Tiger Pro
  • ***
  • Posts: 243
  • Bike: Tiger 800XR 2012
  • Location: Chorley UK
Re: Help! What's this wiring?
« Reply #8 on: November 01, 2018, 09:16:34 AM »
*Originally Posted by K1W1 [+]
It is not a factory fit they don't use cable ties and leave the ends loose.


er...he's already told us that he put the cable tie on himself to stop it flopping about  :157:
« Last Edit: November 01, 2018, 09:18:38 AM by gordybrock »
I'm from Wigan Me

Offline Pusser

  • Tiger Cub
  • *
  • Posts: 11
  • Bike: Tiger 800 (2013)
  • Location: Hampshire
Re: Help! What's this wiring?
« Reply #9 on: November 21, 2018, 03:44:13 PM »
I bought my Tiger 800 (2013 model) last week and discovered the same cable and socket this morning.  I traced it back into the wiring loom.  I do not have ABS and wondered, initially, whether this could be part of the ABS system and therefore not required on my bike.  As it is part of the original loom I guess it must be for some sort of device which is not fitted to all bikes.
