Recent Posts

Pages: 1 2 3 ... 10
1
Tiger 800 / 900 - General Discussion / Fuel
« Last post by nixonpaul1 on Yesterday at 08:12 pm »
2nd tank of fuel  since I bought a tiger 800 xc  2012 .still only geting 145 155 miles to a tank .19 litre is the same as my Yamaha 600 get 200 miles on that. Thanks paul
2
ECU Re-Mapping and Tuning / Tuneecu version 2.5.5 for Windows
« Last post by robert_c@hotmail on Yesterday at 06:08 pm »
Hi,
Someone who has Tuneecu version 2.5.5 for windows and who in that case can email it to robert.johan.karlsson@gmail.com ?
Thanks in advance.

Regards
Robert
3
Electrical, Lighting, and Wiring / Re: What should this connect to?!
« Last post by Stevie.P on Yesterday at 04:58 pm »
*Originally Posted by T800XC [+]
Looks like the Gen 2s from late 2016 onwards in the UK. The OP's XRT appears to be a mid 2015 model, probably explaining why the connector's there but not used.

 :0461:

Although not shown a past post by the OP indicates he had the first MOT mid 2018, so mid 2015'ish bike, similar to mine (registered 1st September) .... and no Evap system or any part of one fitted. Both fuel tank hoses are straight through open vent hoses with no valves (unless ultra hidden), straight from fuel tank to exiting at front LH side of swingarm.
I'll do a separate thread, with pics, on the early 'Gen 2' fuel breather system.

As I currently have the battery out while plodding through a starter motor renewal & 24k service I checked mine out this afternoon and yes, redundant plug tucked neatly out of sight under the main wiring harness under the ECM location. Mine has been there nearly 6.5yrs as part of an uncovered bike in all weathers with no problems.



... also note the large drain hole in the bottom of the battery box which is why the 'Gen 2' & later bikes don't suffer the issues of the 'Gen 1' with its inadequate battery box drainage and water and starter relay corrosion.

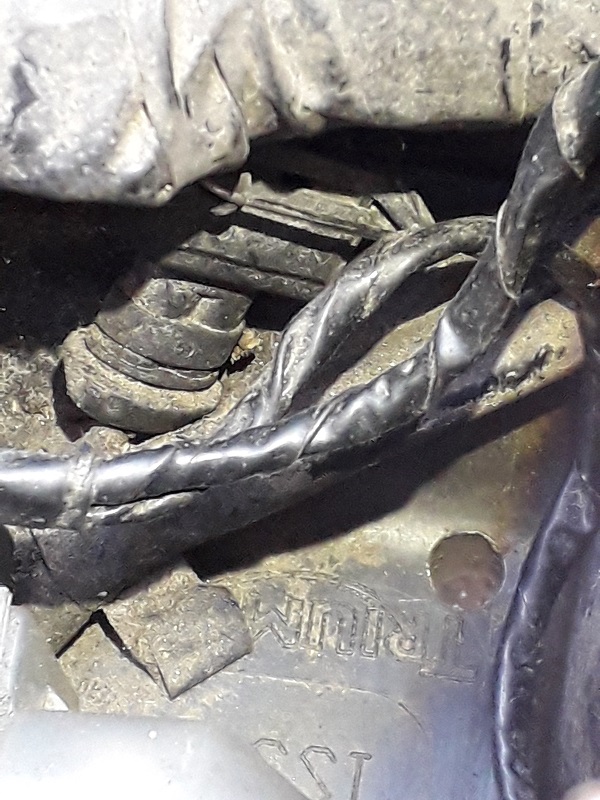

... closer pic.
4
General Maintenance and Servicing / Re: Oil Specification
« Last post by Blue_Rubber on Yesterday at 04:23 pm »
Nice find.

Just need to find somewhere that sells quality oil filters cheaply.
6
Electrical, Lighting, and Wiring / Re: What should this connect to?!
« Last post by T800XC on Yesterday at 03:43 pm »
  :028:
*Originally Posted by awjdthumper [+]
A quick check seems to show it was fitted to all Tiger 800's except for Gen 1 in the UK although it was fitted to Gen 1 bikes in California and Canada.

Scottoiler has some useful info on identifying this in their fitting instructions. Looks like the Gen 2s from late 2016 onwards in the UK. The OP's XRT appears to be a mid 2015 model, probably explaining why the connector's there but not used.
7
General Maintenance and Servicing / Re: Oil Specification
« Last post by Blue_Rubber on Yesterday at 03:25 pm »
Thanks for that, I wasn't able to find it on their site.
Your google fu is impressive!
 :763:

Also seems like a very good deal for high spec synthetic motorbike oil  :046:
8
Electrical, Lighting, and Wiring / Re: What should this connect to?!
« Last post by awjdthumper on Yesterday at 03:23 pm »
A quick check seems to show it was fitted to all Tiger 800's except for Gen 1 in the UK although it was fitted to Gen 1 bikes in California and Canada.
9
Electrical, Lighting, and Wiring / Re: What should this connect to?!
« Last post by T800XC on Yesterday at 03:15 pm »
*Originally Posted by awjdthumper [+]
My understanding is that it was fitted to most UK bikes although most owners may not have been aware of it. The attached pic shows where it is on my 2017 XCA.

Limited evap stuff is fitted to UK spec bikes. The connector in question here is for the purge valve that controls the return of vapour that gets stored in the carbon canister. It sits in the vapour return line between the canister and throttle bodies.

You can see in which markets the additonal parts are fitted in the following parts list:-
https://www.fowlersparts.co.uk/parts/5596824/tiger-800-xca-from-vin-674842/evaporative-loss-control-system

(i.e. California, Hong Kong, Canada, Brazil & Thailand - if I've got the abbreviations correct)
10
General Maintenance and Servicing / Re: Oil Specification
« Last post by JonesTheBass on Yesterday at 02:37 pm »
You can download a tech data sheet from shell.co.uk    use the chat window on the website
